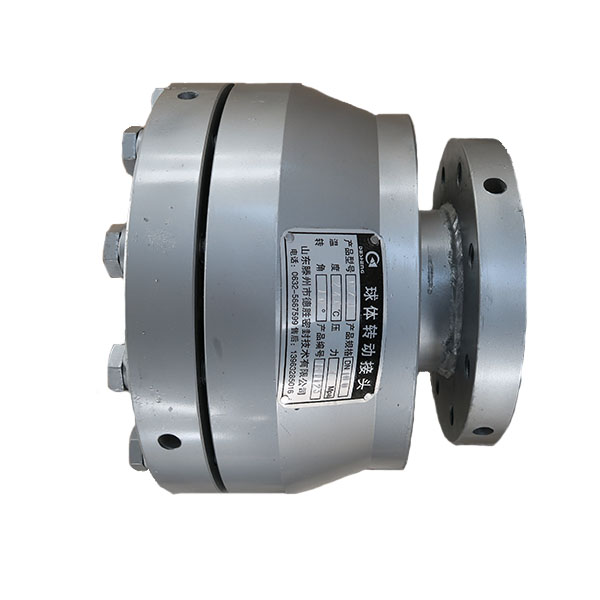

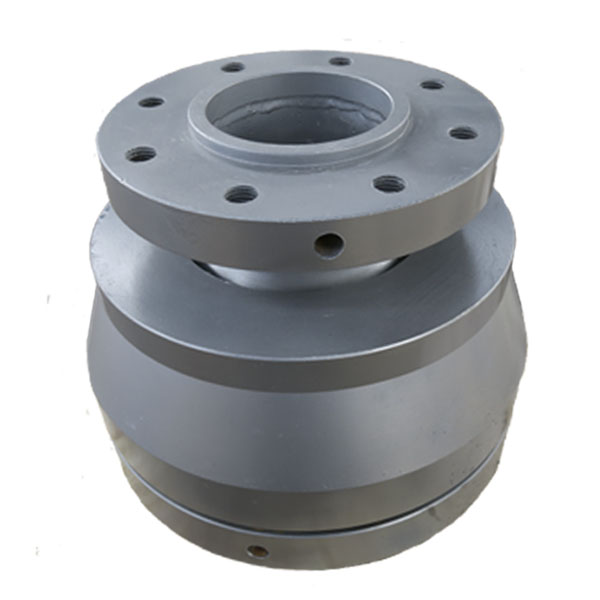

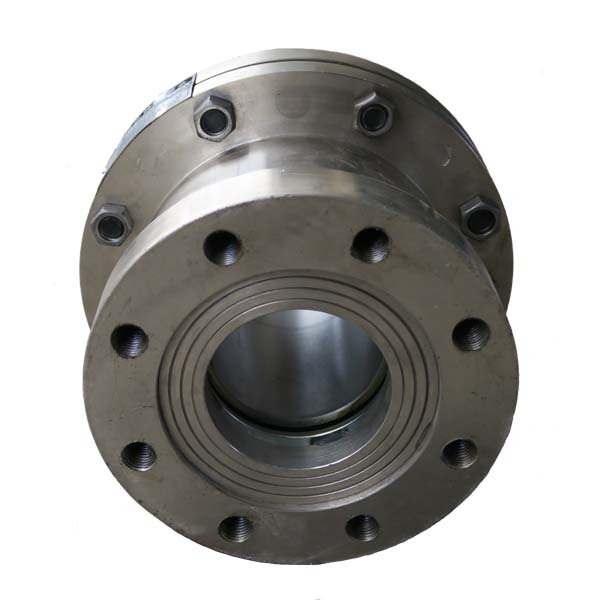

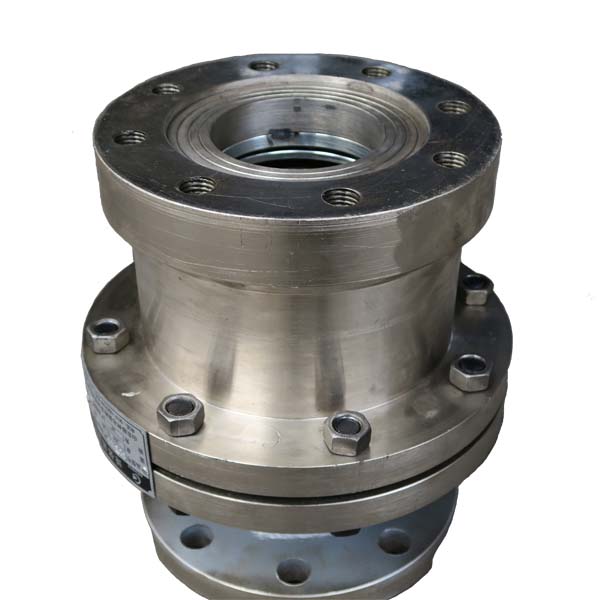

Ball Swivel Joints

Short Description:


  • Operating temperature: T≤250℃
  • Working pressure: P≤4.0MPa
  • Flange standard: JB/TB2/1-94
  • Maximum angle of rotary axis swing: 30°

Detail

Structural characteristics

Sphere rotary joint is applied to the steel plant step beam heating furnace vaporization cooling system on the new technology of the key equipment, it is the heating furnace to do periodic movement of the cooling components and fixed components connected to the flexible tube connected to the main components. In a certain pressure, temperature, and flow medium conditions, to achieve the synchronization of continuous movement with the heating furnace activity device. After years of operation practice has proved: the product design is reasonable, flexible rotation, reliable sealing, by the user's high evaluation. This project fills the domestic gaps and reaches the international level of similar products.

DN L O D D1 D2 b screw hole h work pressure MPa
80 265 270 195 160 135 26 B-M16 24 2.5
100 300 280 260 190 160 28 B-M20 30 2.5
125 369 335 270 220 188 30 B-M22 32 2.5
150 369 380 300 250 218 30 B-M22 32 2.5
